Limb Lengthening at Home | ERC Instructions

1. Power on the External Remote Control (ERC) and wait for the screen to load. Push the button with the green circle and white arrow:

2. Place the white line of the ERC on the marked skin line, as pictured below:

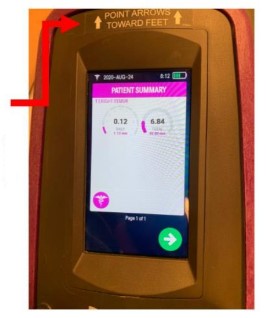

3. Ensure the ERC is oriented correctly. Point the arrows at the top of the device toward your feet. You must be able to read the screen.

4. Ensure that the ERC white line remains on your marked skin line the entire time you are lengthening (usually 15-30 seconds per episode). If the device moves or slips, you may not be lengthening the bone.
5. Push the green button again. Maintain this position while lengthening.

6. Power off the device and plug it into its charger.
7. Please bring your ERC to all appointments with Dr. ______________

ERC Instructional Video

View the video below or at this link https://gillette.mn/PRECICE or click on the QR Code below.
